美國CIRS 036A-CVXX-XX放療測試體模是一個擬人化的胸腔體，包含鉸接的脊柱、肋骨和肺，*有材料都適用于kV和MV能量。
美國CIRS 036A-CVXX-XX放療測試體模產品簡介：
The high dose per fraction associated with SBRT necessitates a high degree of
accuracy in target localization and dose delivery. Small errors can result in
significant under treatment of portions of the tumor volume and over dosages of
nearby normal tissues. The E2E? SBRT Phantom provides a means to check the
entire treatment chain during commissioning and routine QA.

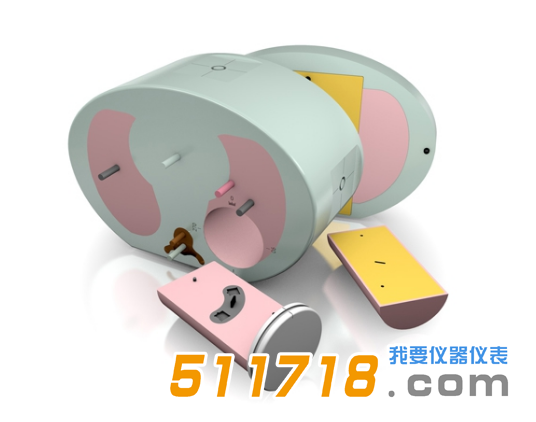

The Model 036A-CVXX-xx* is an anthropomorphic thorax body containing
articulated spine, ribs, and lungs. All materials are suitable for use in kV and
MV energies.

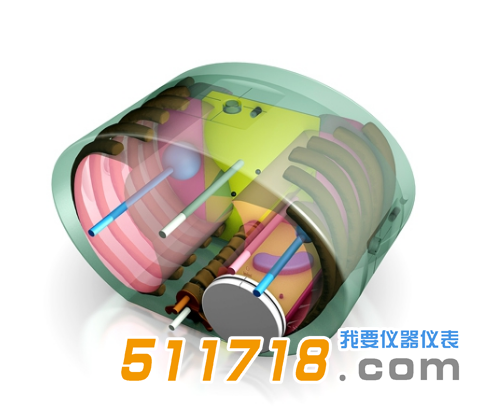

The thorax section contains two lung tumor volumes with ionization chamber
cavities in the center of each target*. The phantom also includes a lung insert
with a kidney-shaped lung target. The proximity of the lung target to the
vertebral body allows clinicians to measure high-resolution dose distribution to
the target and dose to the spinal chord in a single delivery. An axial slice of
the thorax enables high resolution dose distribution measurements to the
vertebral body and vertebral chord. Ready-cut films with integral registration
holes are available for both the lung insert and axial slice.
The surface of the thorax body is machined with concentric circle targets,
point targets and alignment marks for daily system checks.

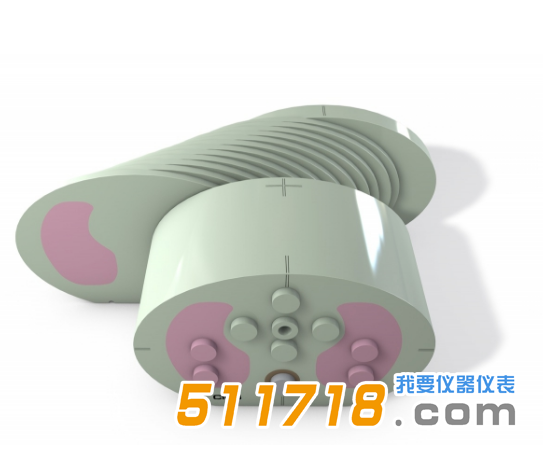

An optional abdominal section (Model 036-01) with 3D spine anatomy for
Gapchronic Film and nanoDot? dosimetry is available separately. It can also
accommodate the CBCT Image Quality phantom (Model 062QA-35). The Model 036-01
provides extra bolus to allow non-coplanar dose assessments with the thorax.
The SBRT phantom is a single tool for end-to-end localization assessment and
dosimetric evaluation for use on both SRS Frame-based and IGRT systems.
美國CIRS 036A-CVXX-XX放療測試體模產品特點：
Thorax with articulated spine, ribs and lungs
Optional Abdomen with Gafchromic Film insert
High Resolution Anthropomorphic Characteristics
Center point fiducial and offset target for daily system checks
Succinct tool for commissioning an SBRT program
Excellent test environment for Monte Carlo dose calculation verification
Supports use and testing of Image Guidance capabilities
Facilitates SBRT planning and delivery for Lung, Liver, and Spine
treatments
*NOTE: This product or an optional accessory of this product requires a CIRS
dosimetry cavity code before an order can be placed. Please refer to the
Dosimetry Cavity Codes document to identify the CIRS code for the probe you
intend to use with this product.
